Heavy-Duty Livestock Weigh Beams for Accurate Farm Weighing

Reliable weigh beams designed for cattle, sheep, and pig weighing systems
Built to deliver stable, repeatable weight readings in crushes, alleyways, and outdoor farm environments.

HiRancher ABH weigh beams are engineered specifically for livestock weighing, where animal movement, impact load, and harsh conditions are unavoidable. Whether installed under a cattle crush, raceway, or weighing platform, they provide dependable performance for daily farm operations.

✔ Designed for livestock movement and impact
✔ IP-rated protection for outdoor and muddy yards
✔ Compatible with digital weighing indicators and EID systems

Is This the Right Weigh Beam for Your System?

Our ABH livestock weigh beams are suitable if you need:

• Accurate weighing for cattle, sheep, or pigs
• Stable readings in crushes, alleyways, or race systems
• Reliable performance in outdoor, wet, or muddy environments
• Integration with livestock weighing indicators
• A solution that can scale into a complete weighing + EID system

If your operation involves regular livestock handling and weight monitoring, this weigh beam is designed for your setup.

👉 Not sure? Send us your setup details for confirmation

Features

• Double-deck structure powder coated carbon steel
• Heavy Capacity up to 3,000kg, optional 5,000kg

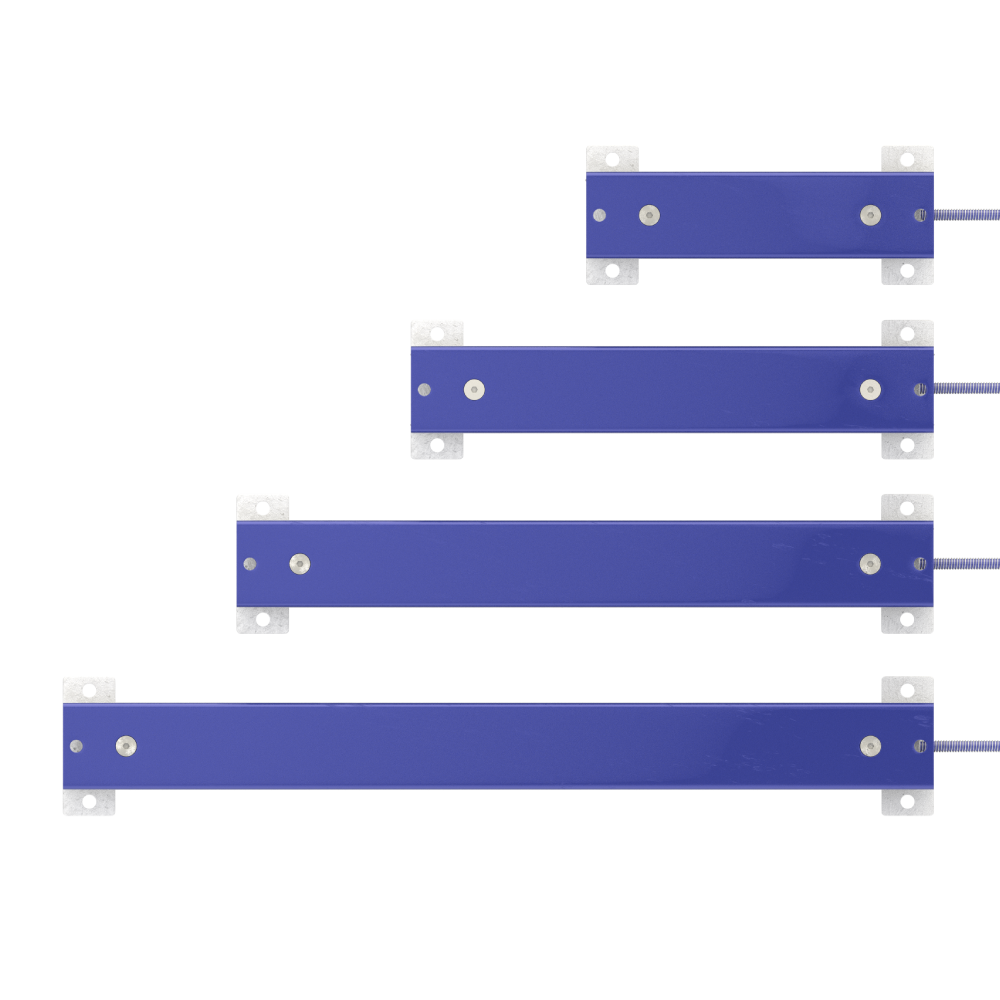

• Four lengths: 400mm, 600mm, 800mm,1000mm
• Support length customization
• Cable with stainless steel spring cover
• There are four fixing holes on the base plate (Can be installed temporarily or permanently)
• Compatible with most indicators and no calibration required

Application Scenarios

• Cattle Crush Weighing

Installed beneath manual or hydraulic cattle crushes, ABH weigh beams deliver consistent results even when animals shift or apply uneven loads.

• Alleyway & Raceway Weighing

Ideal for race-based weighing systems where animals move quickly. The reinforced beam structure minimizes errors caused by side loading and impact.

• Outdoor Farm Weighing

Built for open yards exposed to rain, mud, and manure. Suitable for both permanent installations and mobile weighing platforms.

• Sheep & Pig Weighing Systems

Compact and stable enough for smaller livestock, ensuring accurate data collection for growth tracking and management decisions.

Built for Stability in Livestock Weighing

Unlike industrial weigh beams, ABH weigh beams are developed specifically for livestock behavior:

• Reinforced internal structure resists side loading
• Designed to absorb shock and movement from animals
• Sealed load cell housing prevents water and moisture ingress
• Reliable performance during dynamic weighing conditions

This ensures consistent weight data you can trust for herd management and traceability.

System Compatibility & Integration

ABH weigh beams integrate seamlessly with:

• Livestock weighing indicators
• EID-enabled scale indicators
• Alleyway and crush weighing systems
• Fixed and portable weighing platforms

They can be supplied as part of a complete livestock weighing solution, including indicators, EID readers, and data management support.

👉 Ask about complete weighing system packages

Installation & Calibration

• Simple bolt-on installation under crushes or platforms
• Factory calibrated before delivery
• Easy zero and span adjustment via weighing indicator
• Technical guidance available for first-time installations

Designed to reduce setup time and long-term maintenance effort.

FAQ

• Is livestock load bars weather-resistant for outdoor use?

Yes, the powder-coated carbon steel provides good durability in farm environments. For high-humidity or coastal areas, hot dip galvanized ABT is also available.

• Do livestock weighing beams require maintenance to maintain its accuracy?

Minimal. Just keep the bars clean and dry after use. Check cables for wear, and store indoors if unused for long periods. No frequent recalibration is needed thanks to the internal factory settings.

• What are the advantages of weigh beams over traditional floor scales?

Weigh beams are more flexible, portable, and cost-effective. You can use them in various setups, under chutes, crates, platforms, and reposition them easily, which is ideal for livestock farming.

Get the Right Weigh Beam for Your Operation

Choosing the correct weigh beam depends on animal type, capacity, installation method, and environment.

Tell us about your setup, and our engineers will recommend the most suitable beam configuration.

👉 Get a Weigh Beam Recommendation
👉 Request a Quote for Your Project
👉 Ask About Complete Livestock Weighing Systems
